Verification of Logic Operations

The first verification unit we will construct will be for the logical operations. We will only make use of one component from the Open Verification Library, assert_implication. Read its description from the documentation (Assert_Implication).

We will use a comparison of ALUop as the antecedent expression; this identifies which operation we are verifying. A comparison of the returned result ( R ) to the expected result (For the case of ALUop =”0000” we expect a result of A AND B ) is used as the consequent expression. If the antecedent expression is true but the consequent expression evaluates false, an error will be reported to the simulator. We have the option of writing what that error message will be and its severity level (Right Click on Component à Object Properties à Generics). Use severity_lvl = ERROR, any level higher than this will cause the simulator to halt operation when errors are detected.

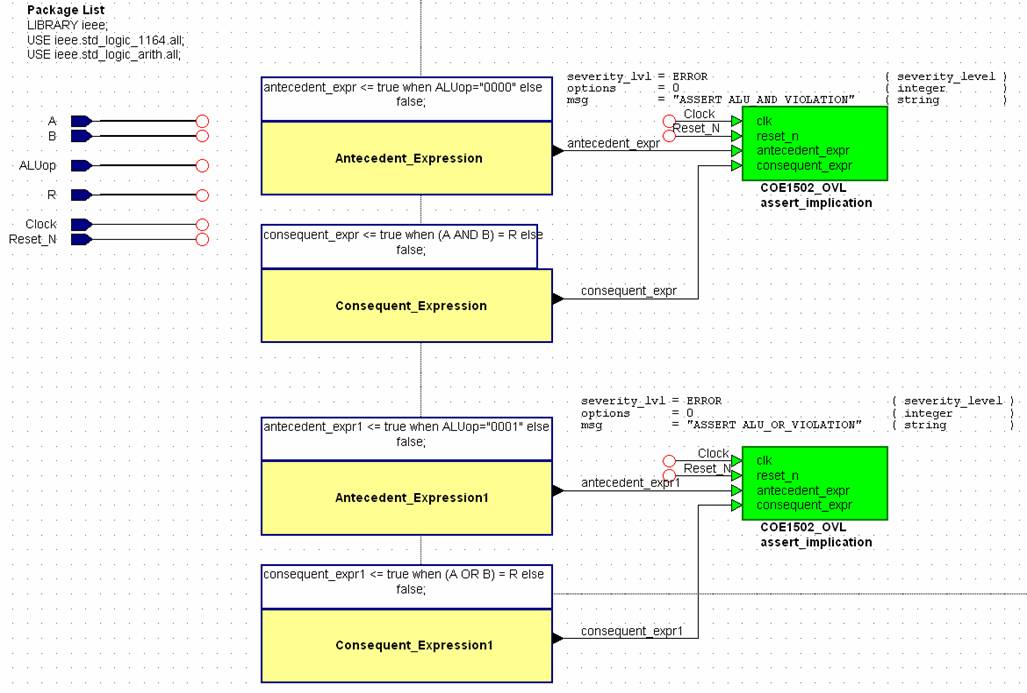

Figure 6.

Shown above are the assertions for the AND and OR operations, you will also have to include assertions for the other two logical operators in your testbench.
