Verification of Comparison Operations

Verification of the comparison operators has to be handled differently than the logical operations. The result can now differ depending on whether the operands are considered to be signed or unsigned numbers. For both cases however, the assertions will look identical ( Except for ALUop ):

--Antecedent Expression

antecedent_expr <= true when ALUop="1011" else false;

--Consequent Expression

consequent_expr <= true when ( ( A < B) AND (R = X"0000_0000_0000_0001" )) OR ( ( A >= B) AND(R=

X"0000_0000_0000_0000" )) else false;

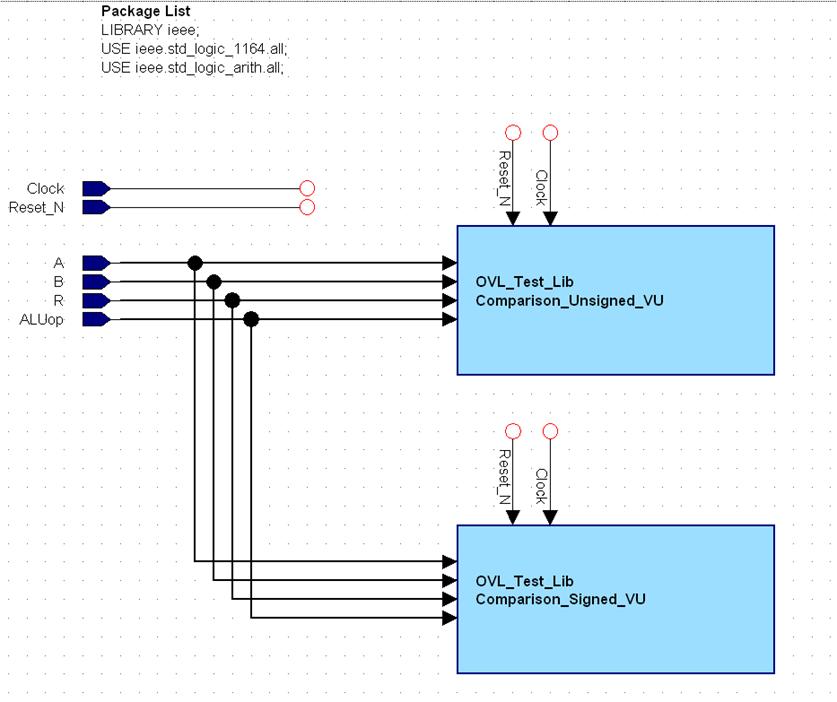

So how do we differentiate between signed and unsigned operands in our design? The VHDL operations ‘<’ and ‘>=’ for std_logic_vectors are defined inside of the IEEE library and we can choose which definition to use. The first step in doing so is to split up the signed and unsigned operations into two separate entities as shown in Figure 7. This has to be done because it is not possible to have two definitions for the same operator, ‘< signed’ and ‘< unsigned’, defined within the same scope.

Figure 7.

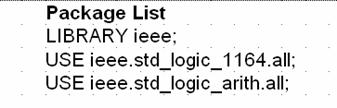

Descend into the Comparison_Unsigned entity and add the assertion for it that is shown above. Next, double-click on the Package List in the top left-hand corner of the schematic window.

Figure 8.

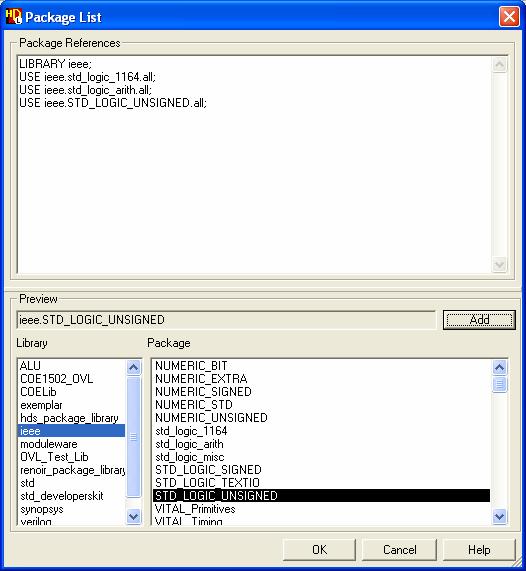

When you do so, you should see the following pop-up window. Add the STD_LOGIC_UNSIGNED package to the Package list by selecting it (Located within the IEEE library) and clicking the Add button. Your screen should look like the below figure after it has been added. The ‘<’ operation defined within this package interprets the operands as unsigned values. You can look at the definitions for yourself by opening up the IEEE library from HDL Design Manager and browsing through the package definition for STD_LOGIC_UNSIGNED.

Figure 9.

Repeat all of the above for the Signed Comparison entity, except this time add the STD_LOGIC_SIGNED package to the package list. The operations within this package interpret the operands as signed two’s complement numbers.
