KDKA-AM 1020 New Harris 3DX-50 Transmitter

Click on any image to get a 640x480 version. Click on 1600x1200 to get the original size image.

1600x1200	1600x1200	1600x1200

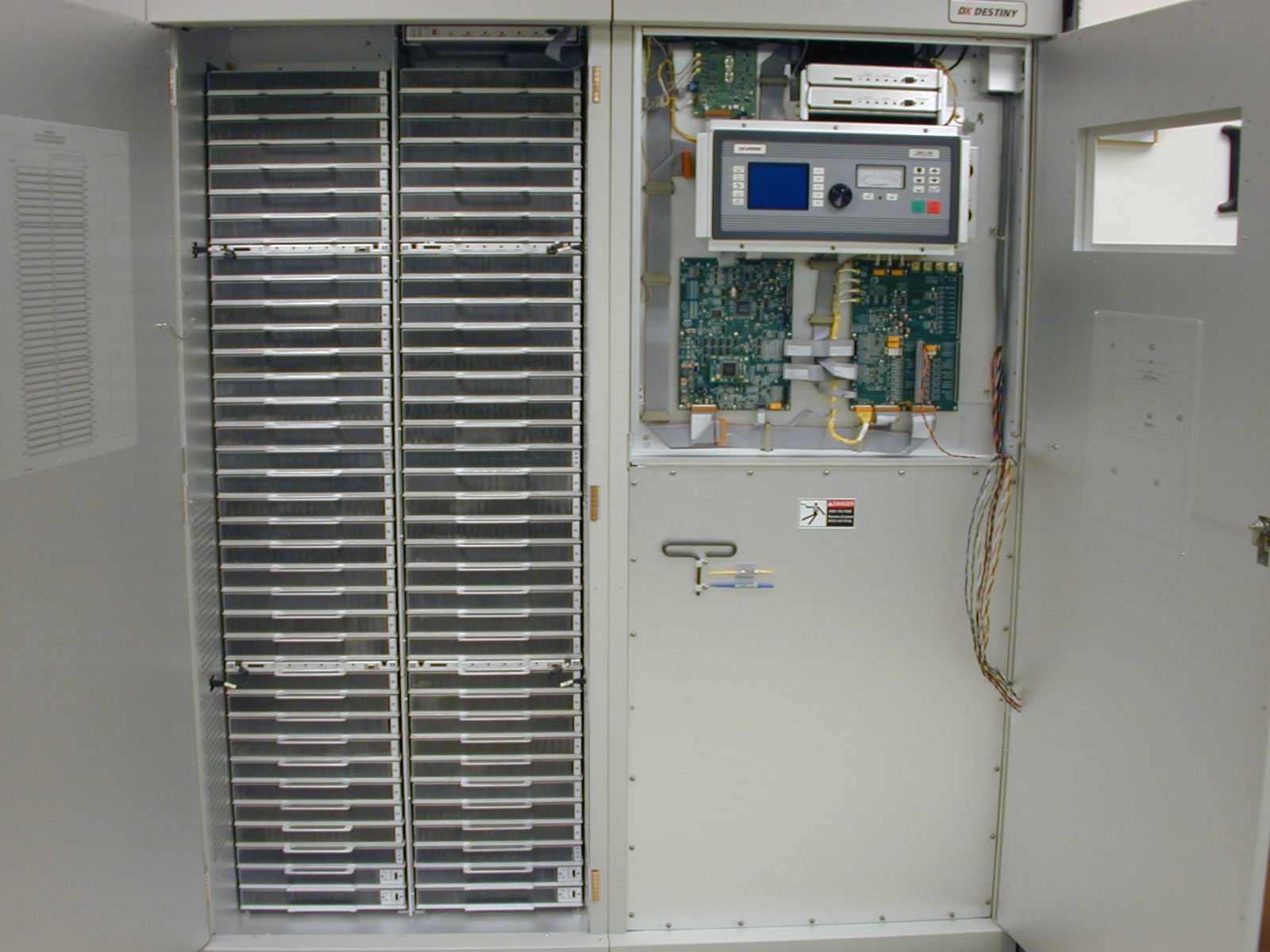

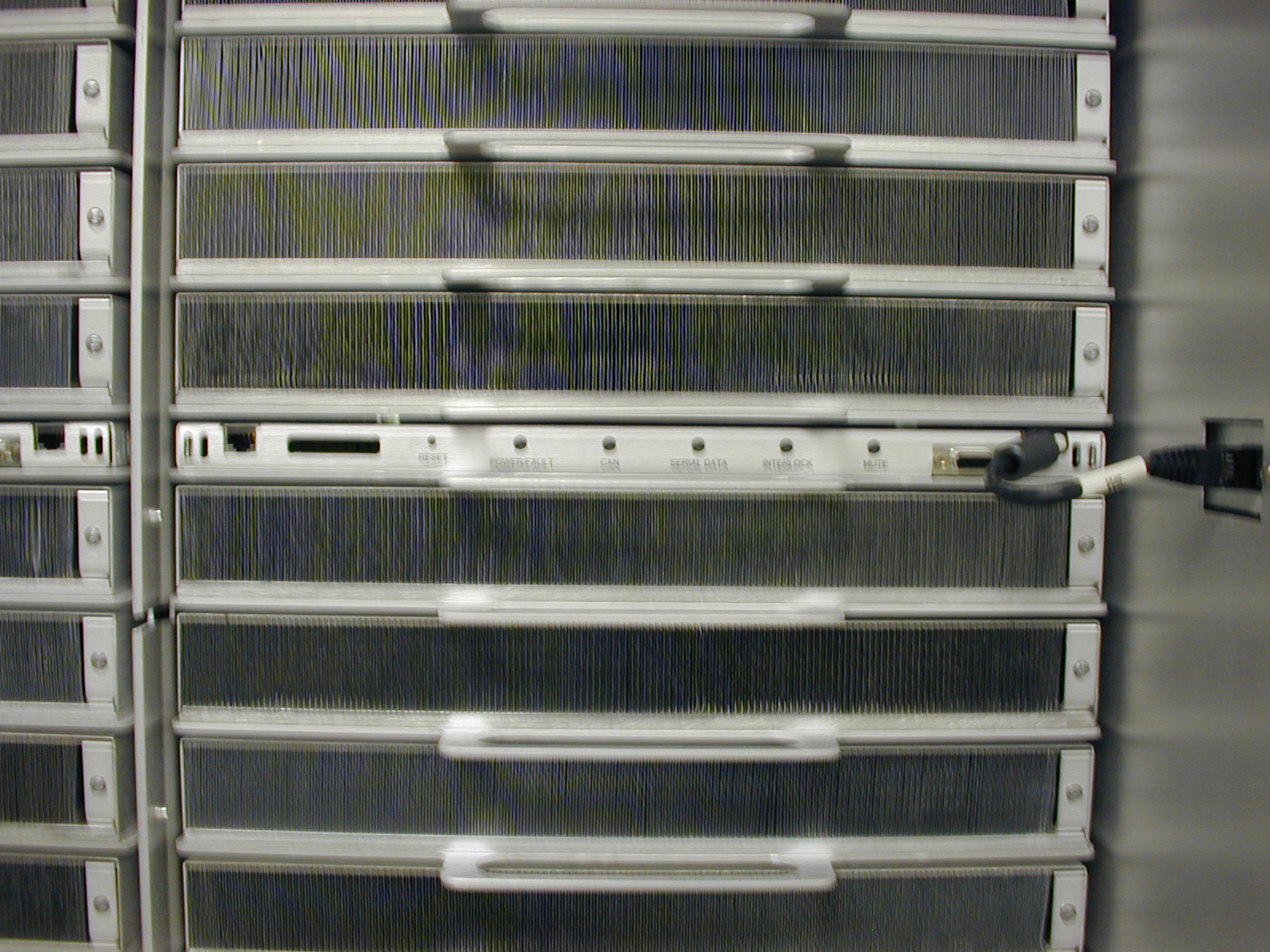

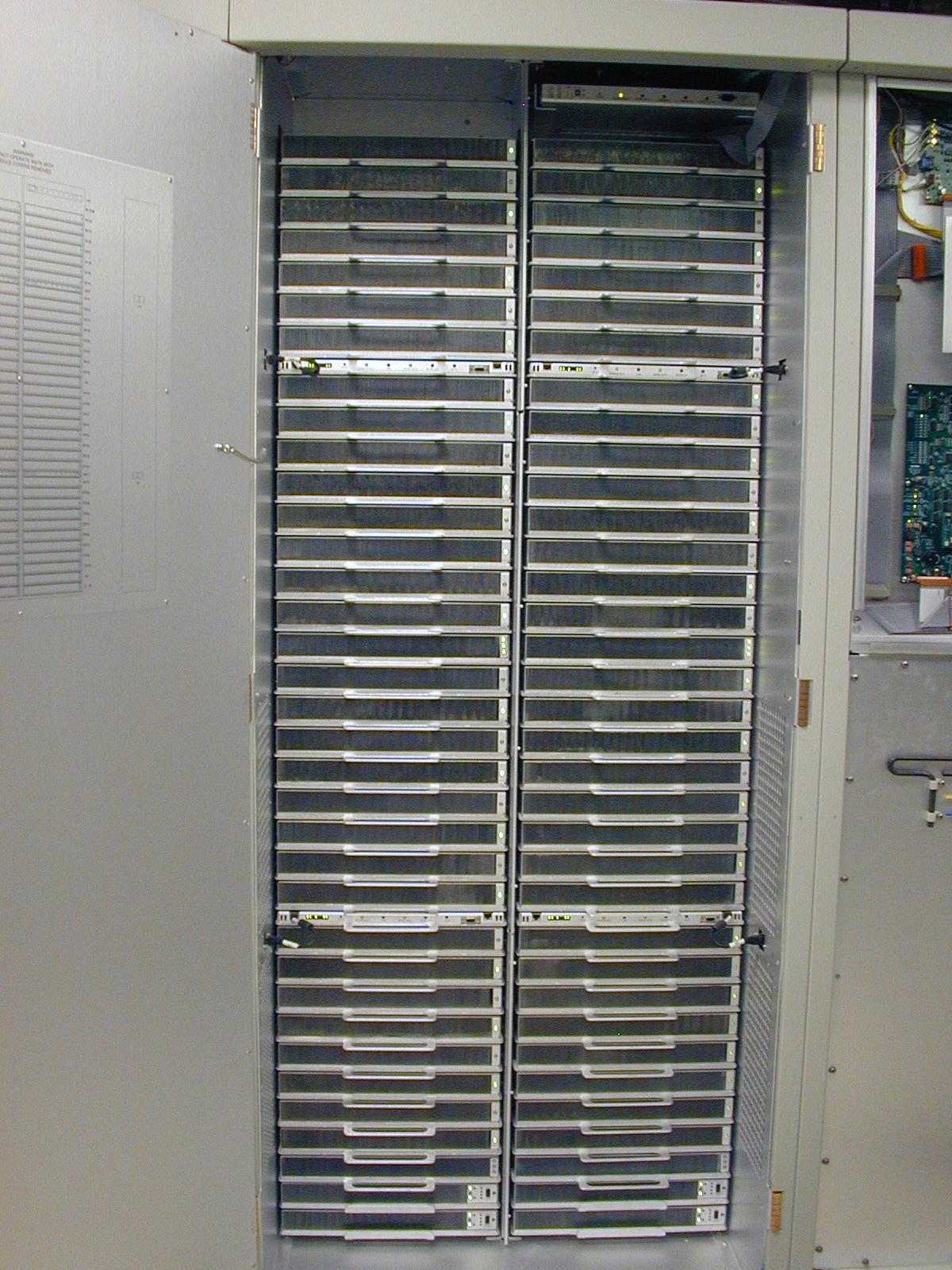

New Transmitter, PA and Output cabinets	New Transmitter controls	PA modules
1600x1200	1600x1200	1600x1200

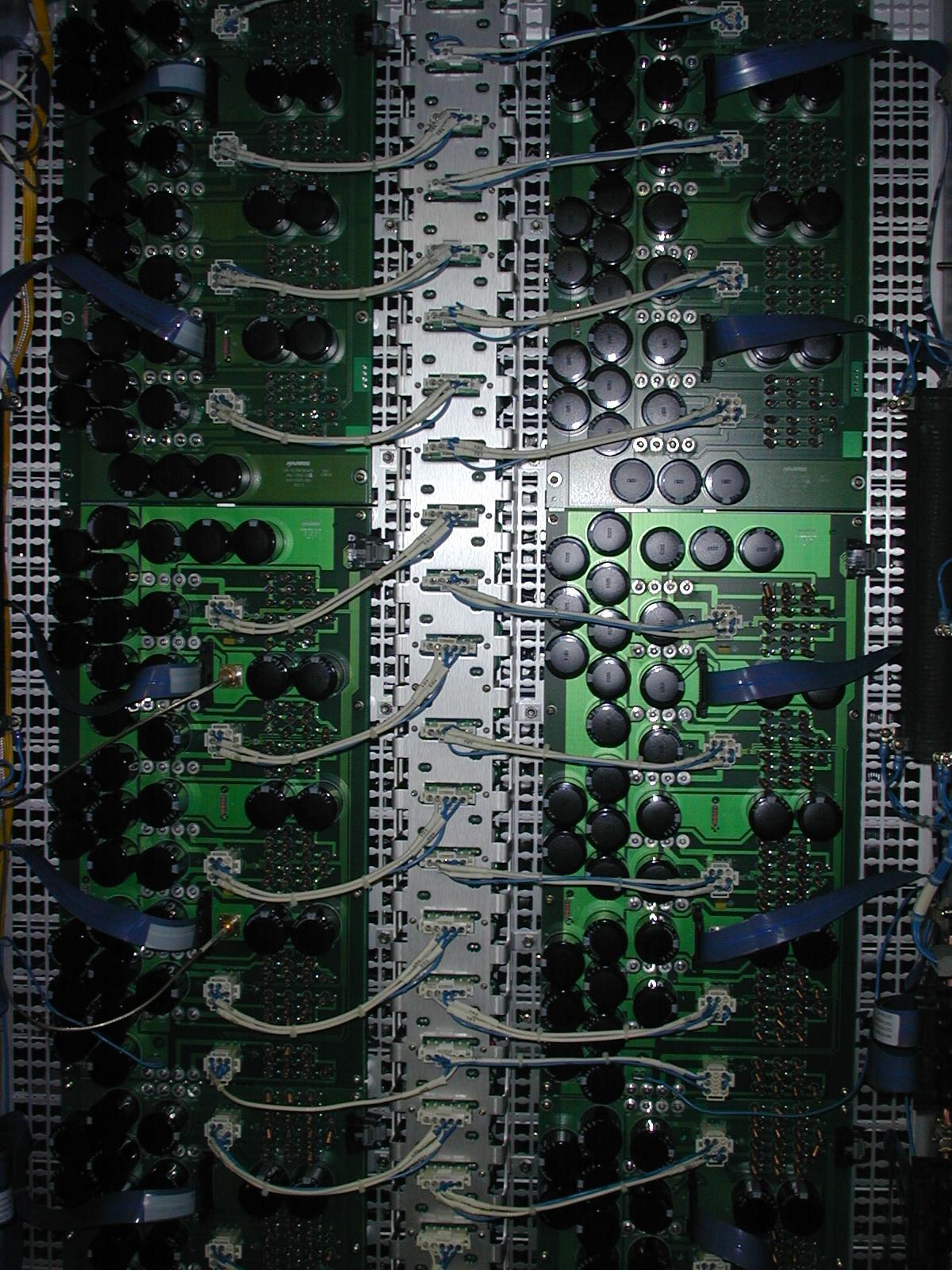

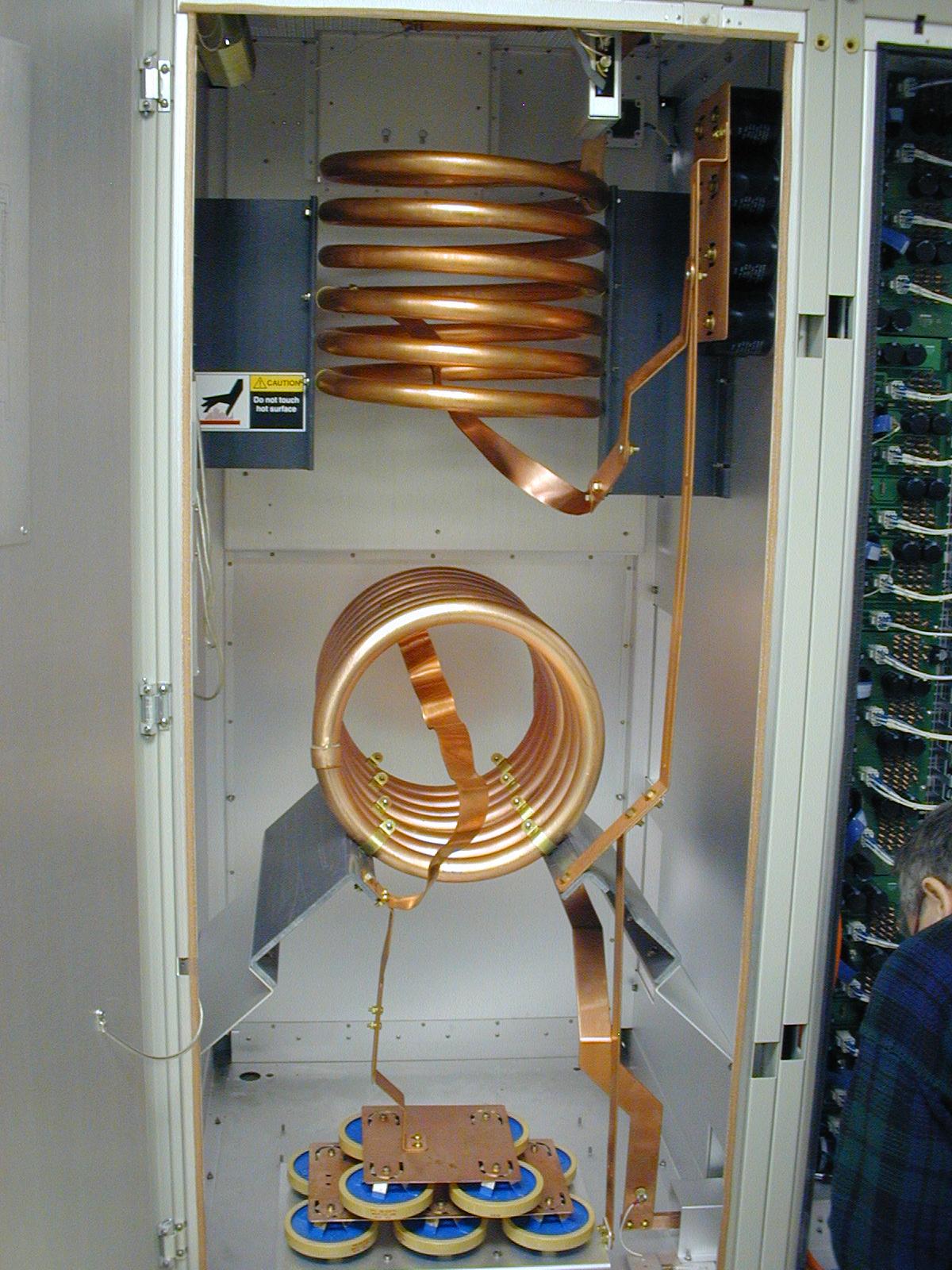

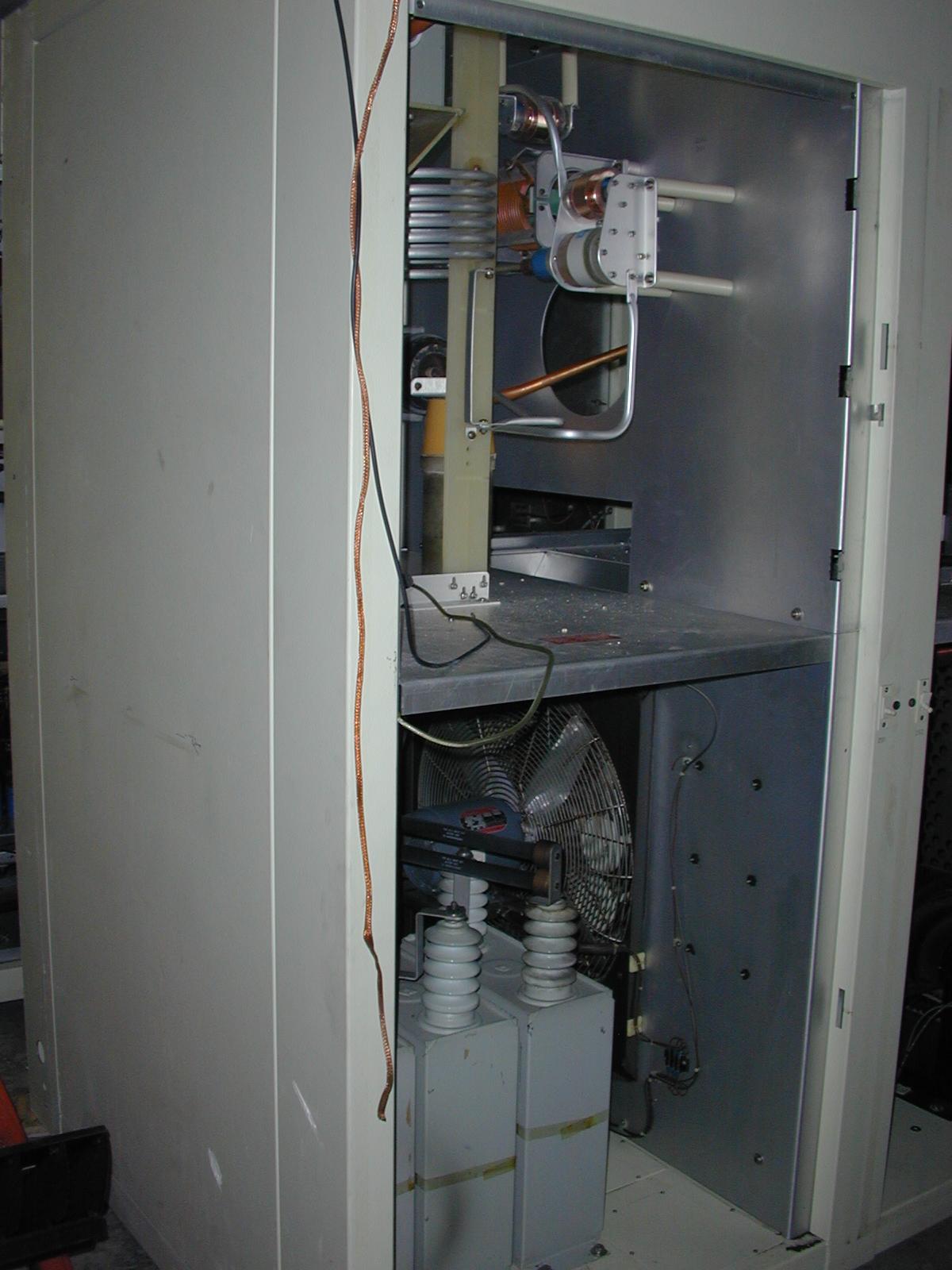

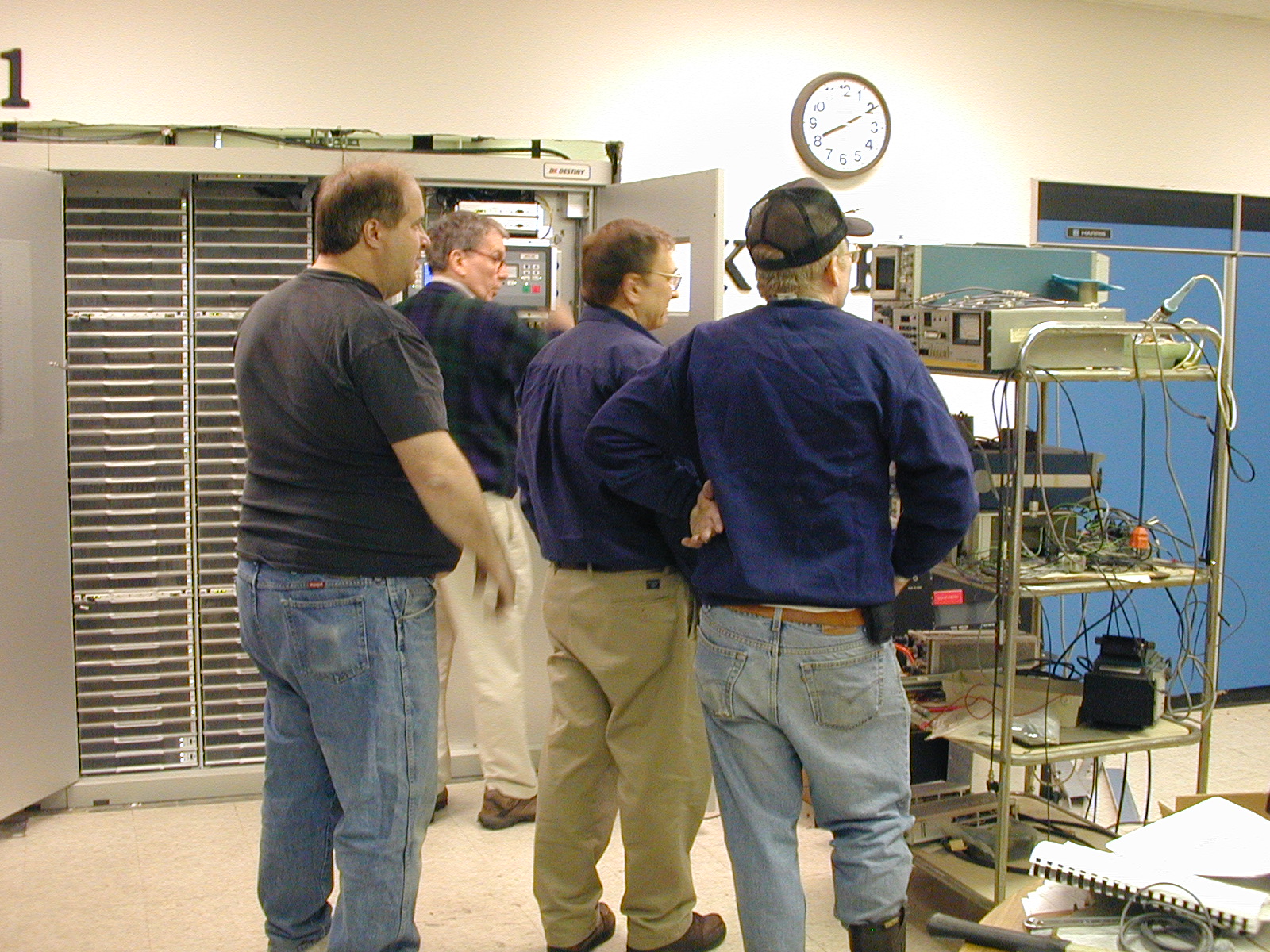

L-R Vic, Chris, Jim and Roy in the rear of the transmitter	Rear of PA cabinet	Rear of PA cabinet
1600x1200	1600x1200	1600x1200

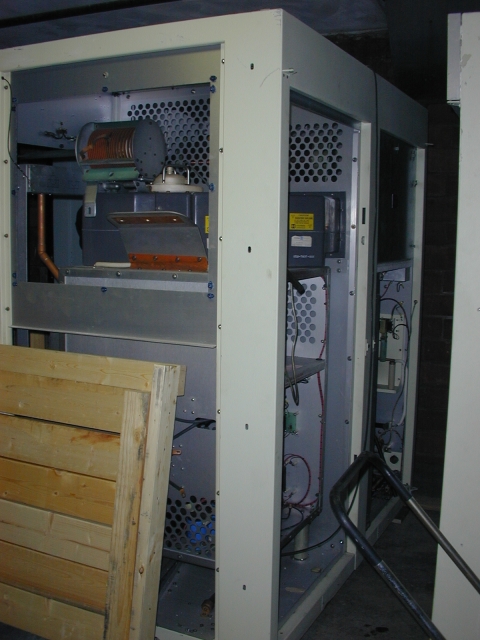

Rear of Output cabinet	Harris MW-50 removed from service	Harris MW-50 removed from service
1600x1200	1600x1200	1600x1200

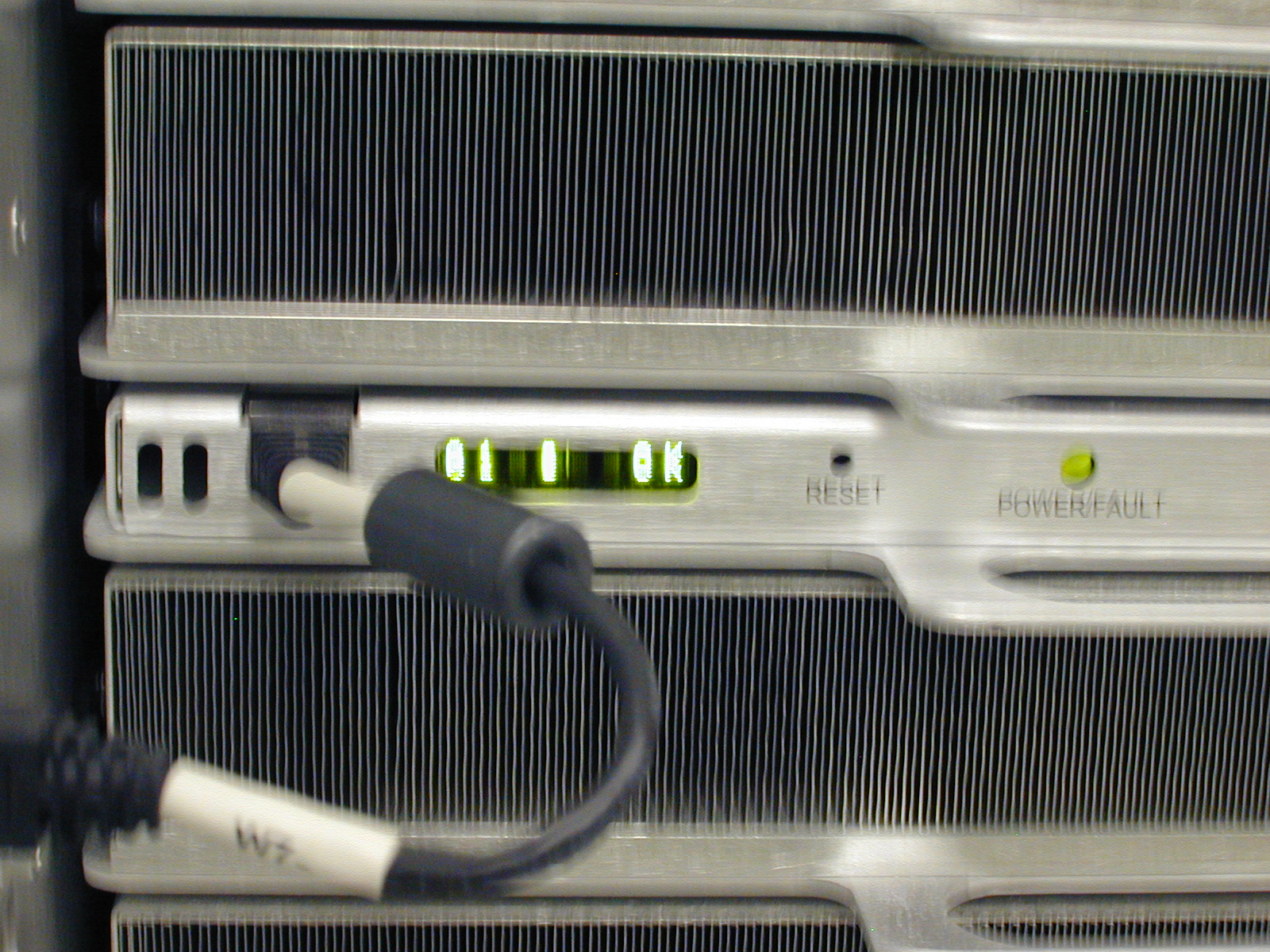

L-R Vic, Roy, Chris and Jim checking modulation	L-R Roy, Chris and Vic adjusting power	PA cabinet operating -- Green LEDs indicate active modules
1600x1200	1600x1200	1600x1200

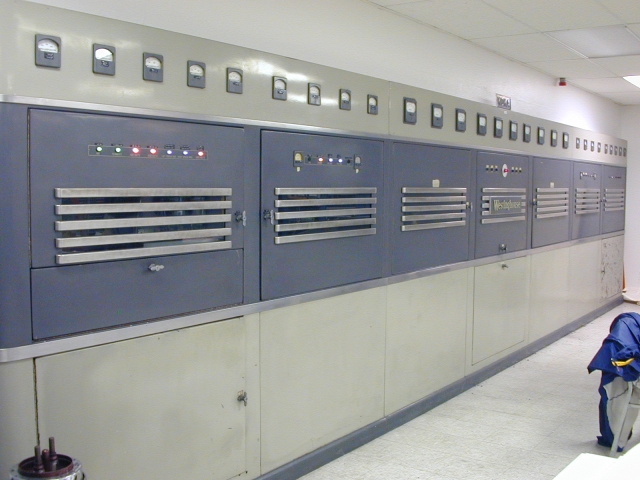

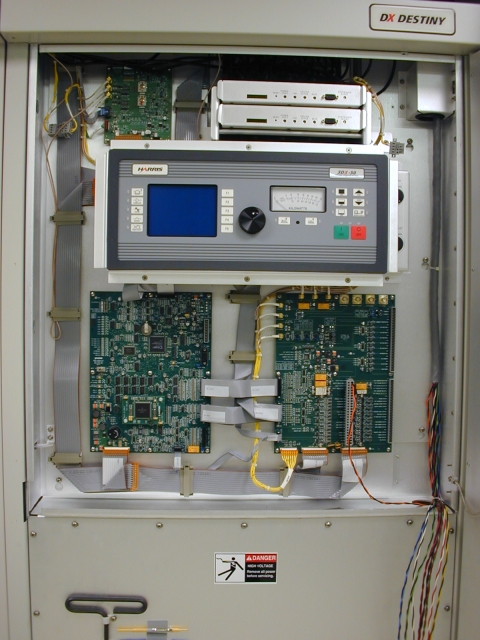

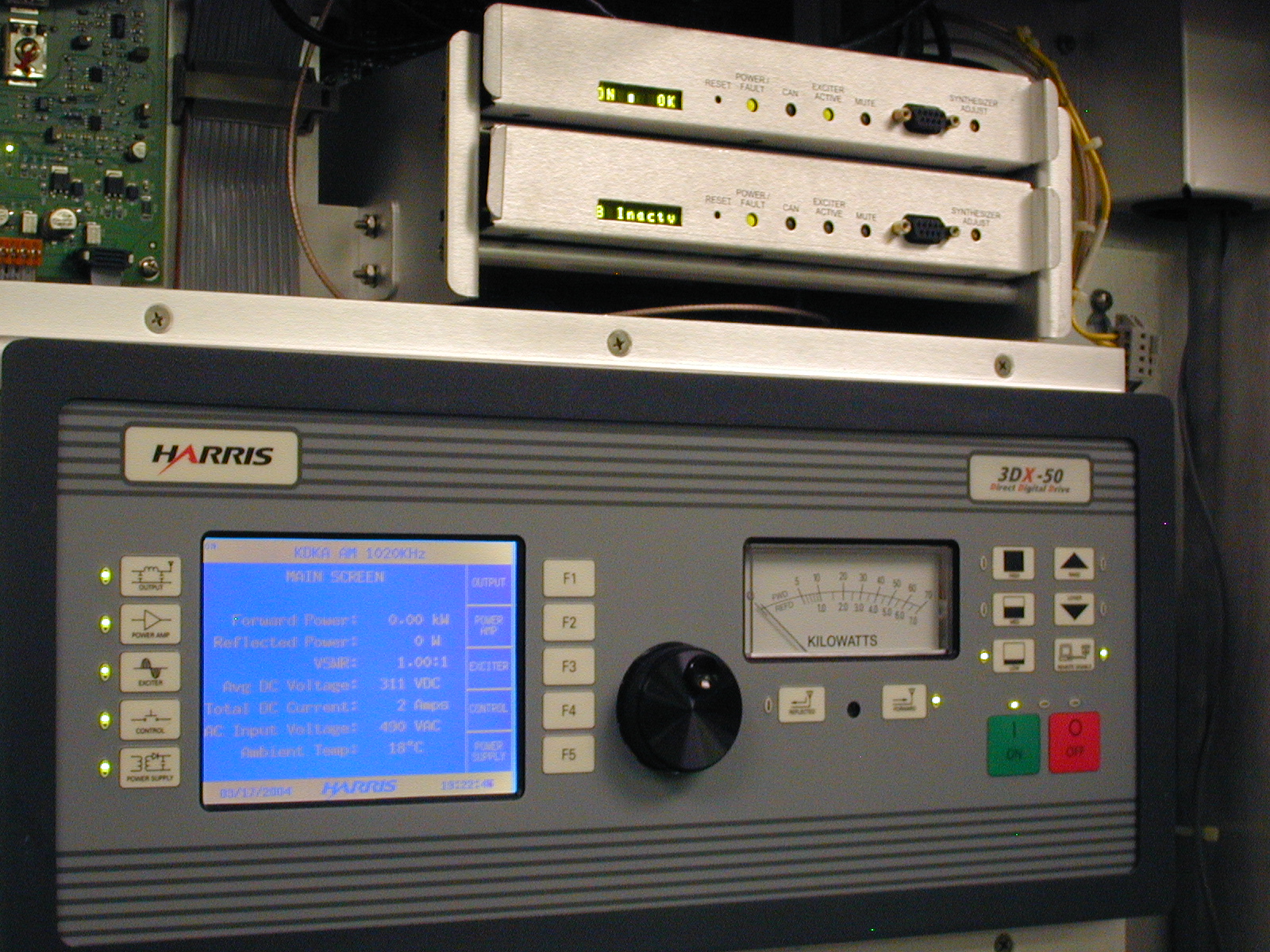

PA modulation encoder	Transmitter Controls with dual exciters above	1939 Westinghouse transmitter
1600x1200	1600x1200	1600x1200

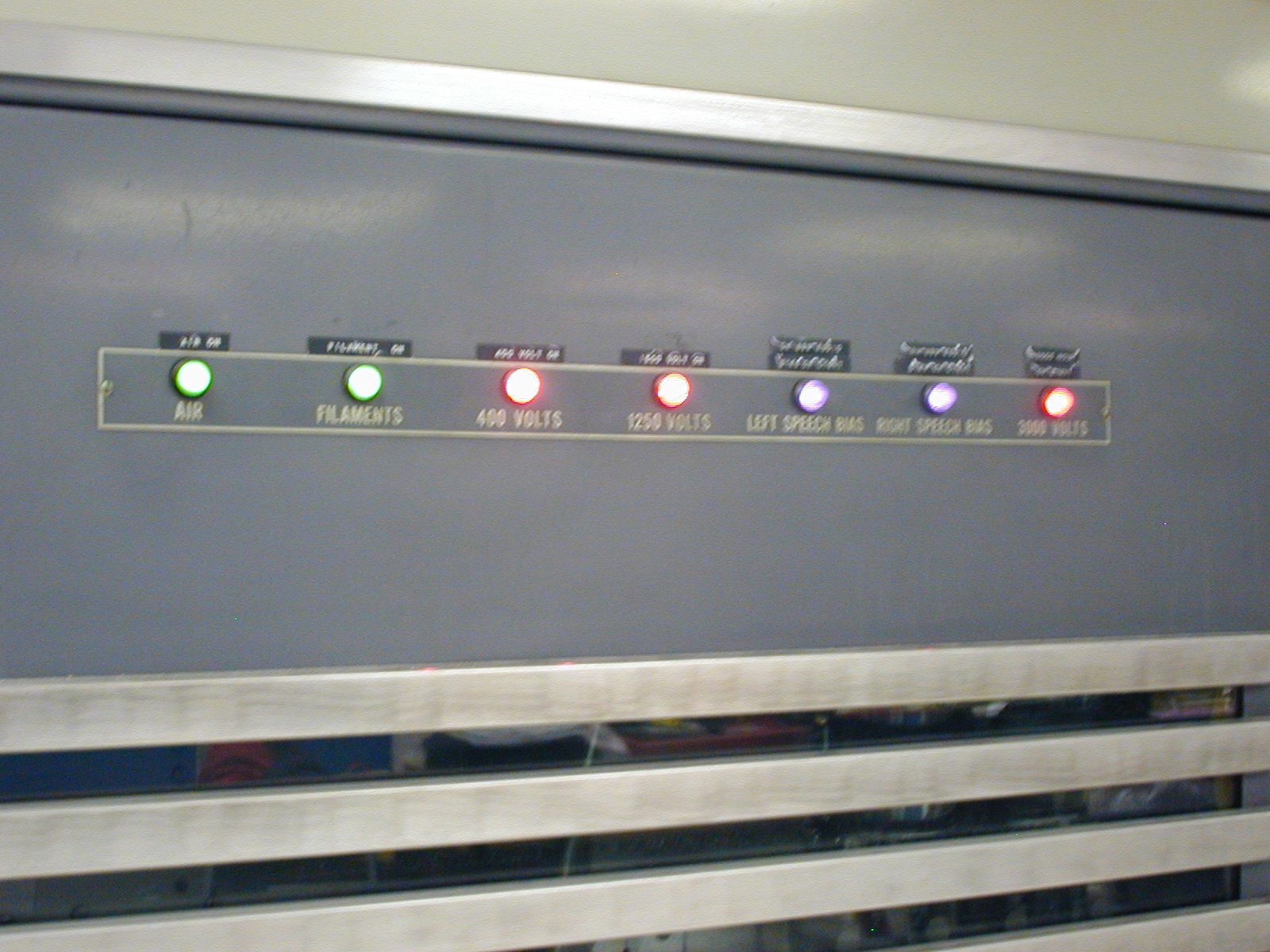

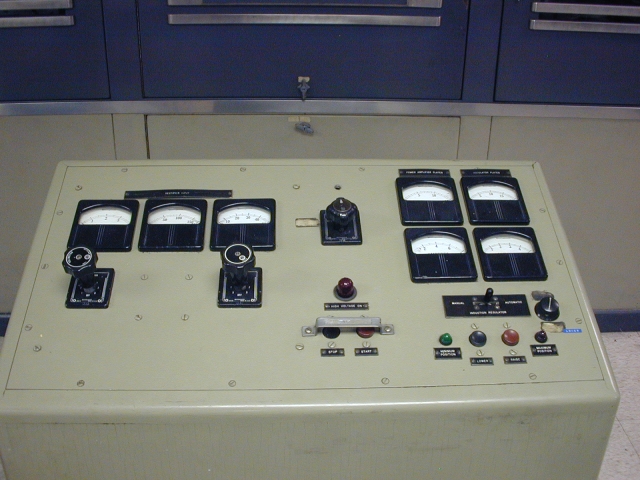

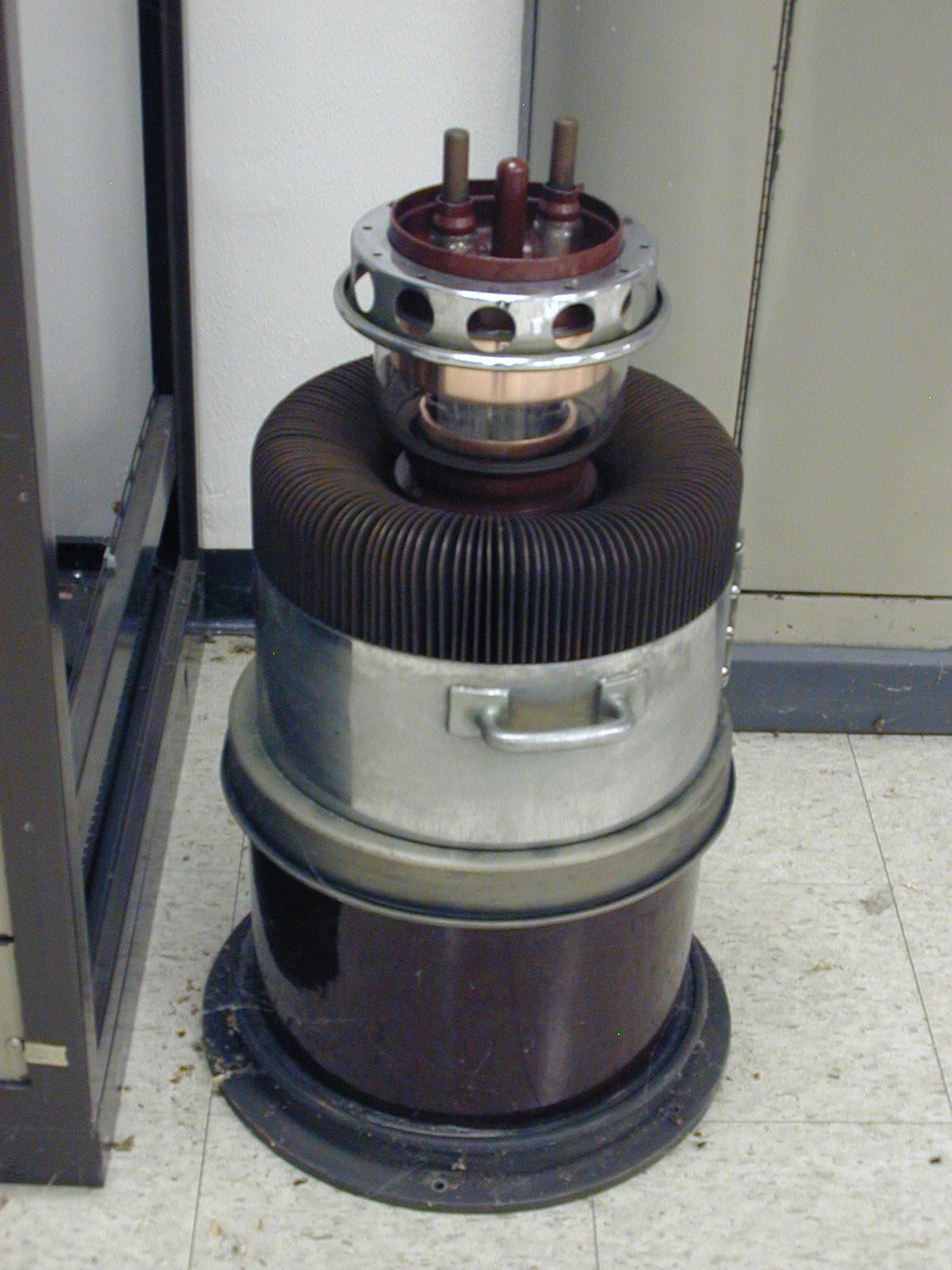

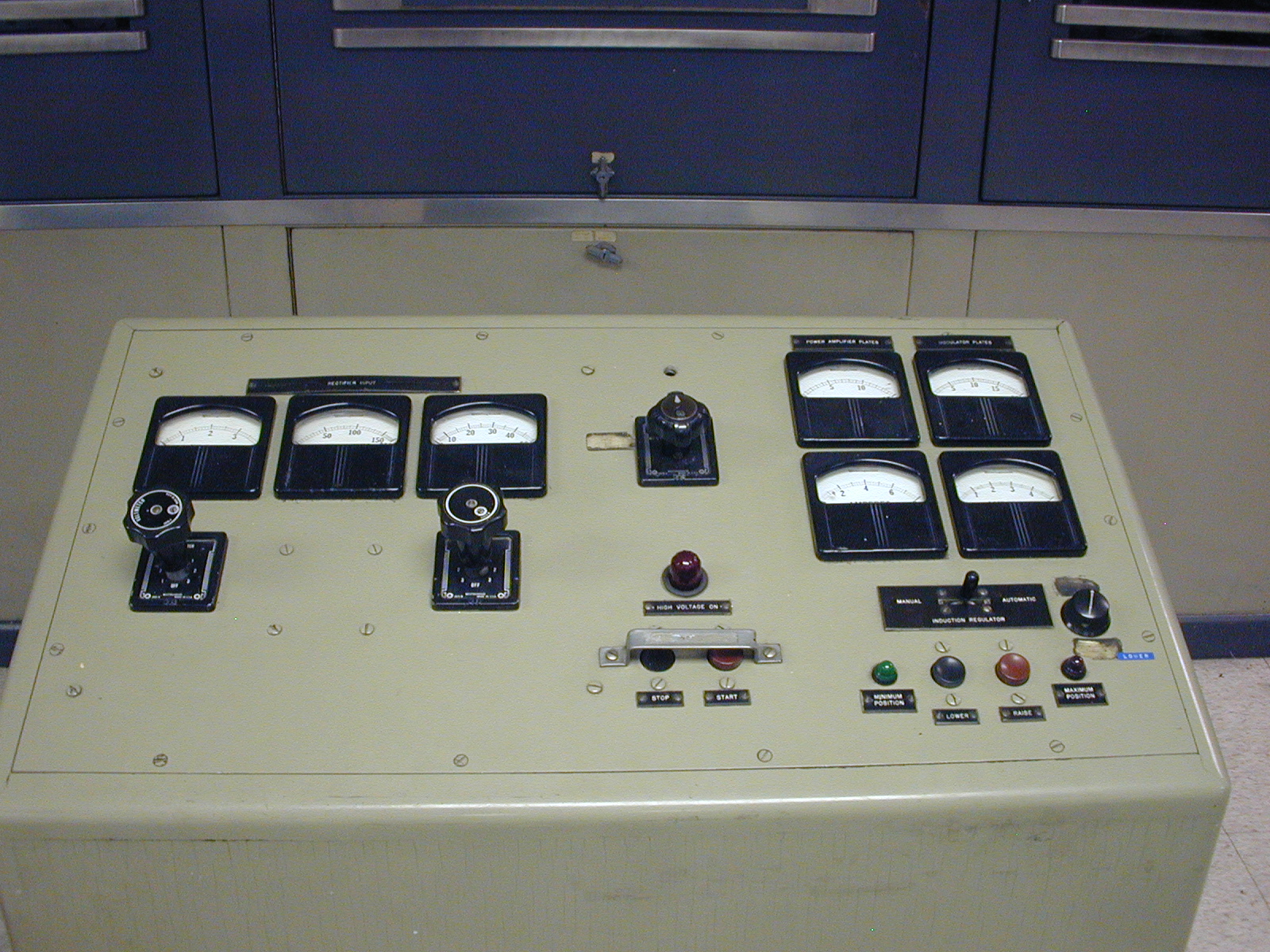

1939 Westinghouse transmitter	Tube from 1939 Westinghouse transmitter	Controls for 1939 Westinghouse transmitter
1600x1200	1600x1200

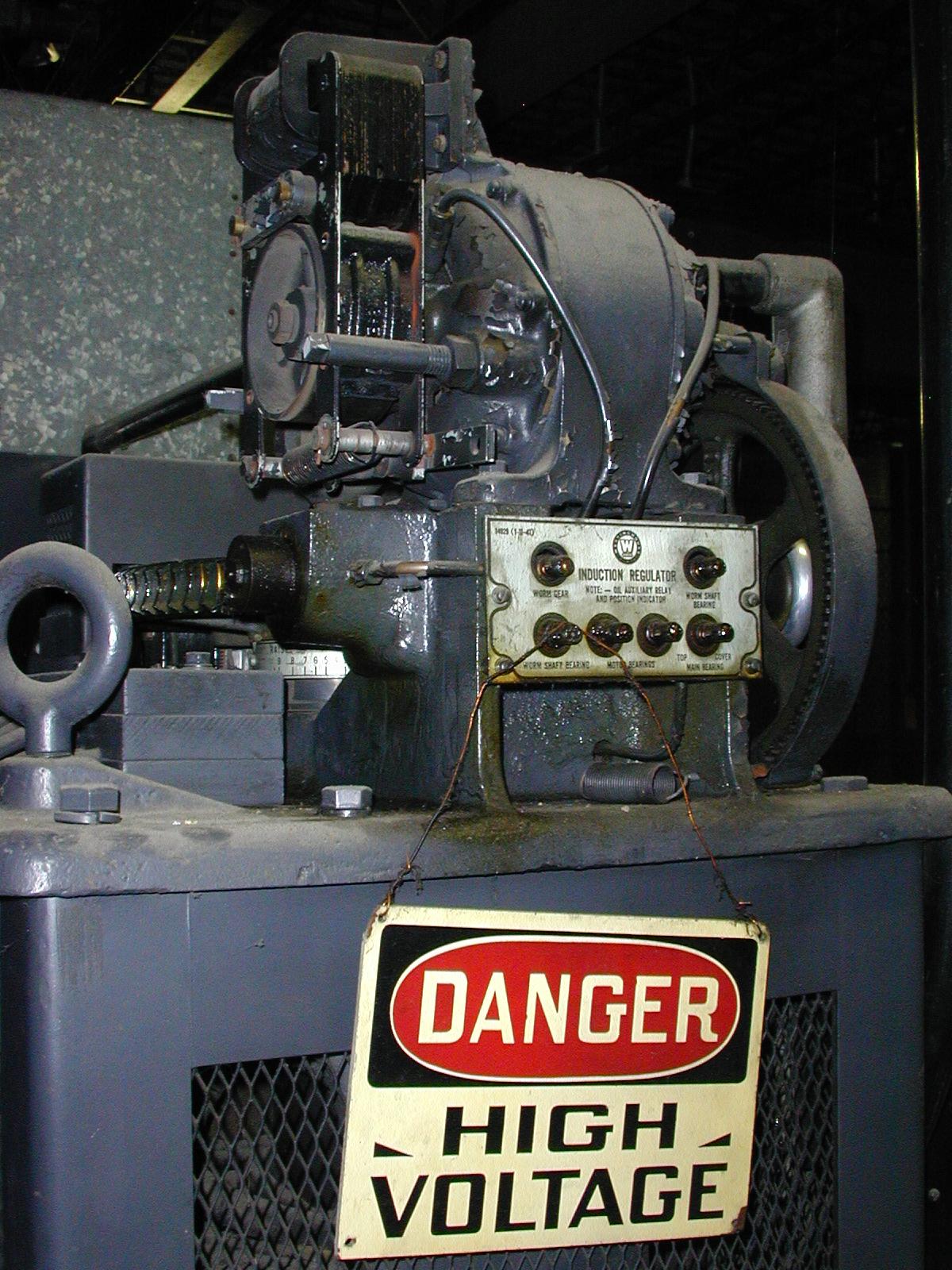

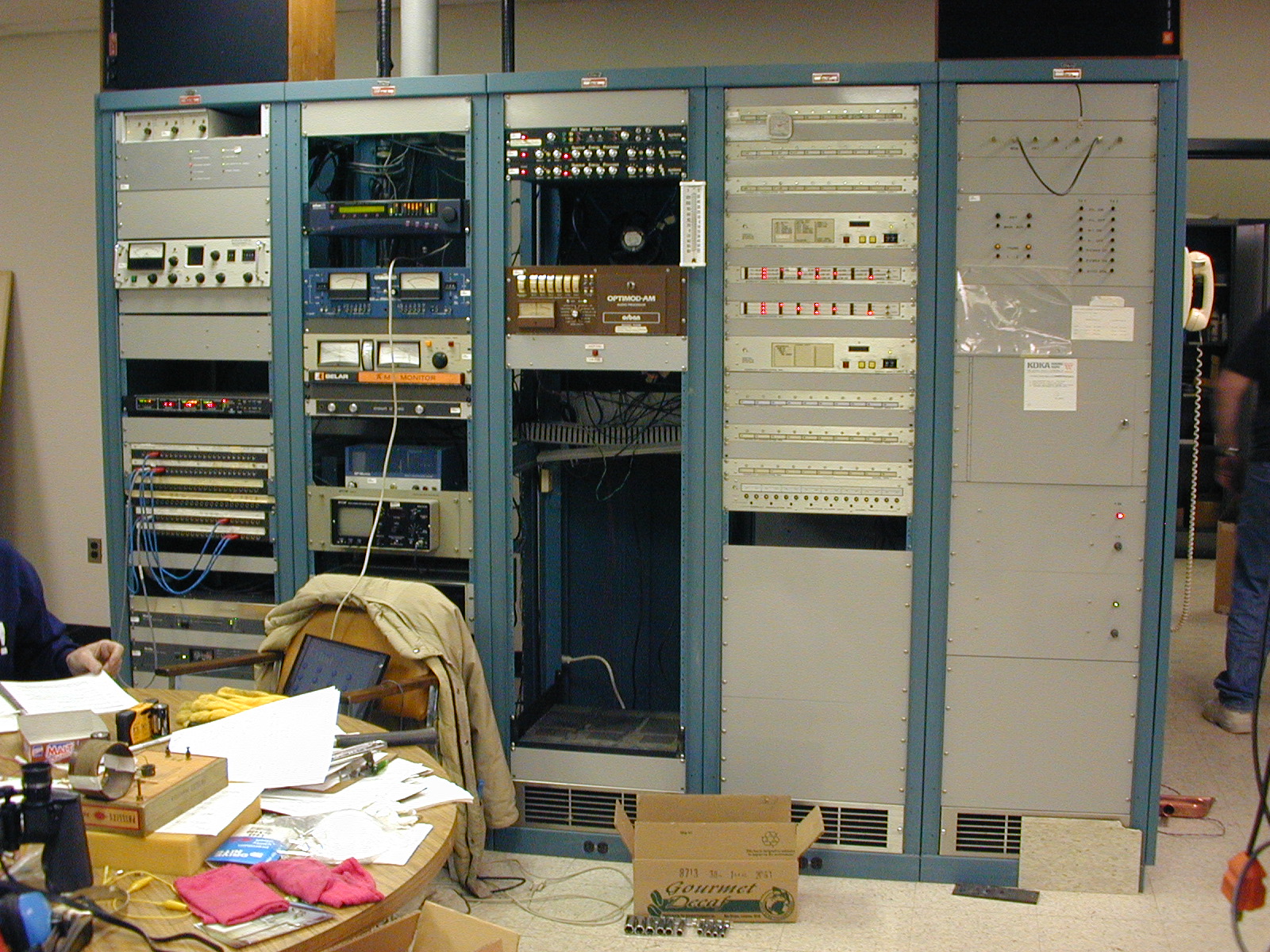

Induction Regulator for 1939 Westinghouse transmitter	KDKA audio and remote control
