assert_win_change

Ensures that the value of a specified expression changes in a specified window between a start event and an end event.

Parameters:
severity_level
width
property_type
msg
coverage_level
Class:
event-bounded assertion

Syntax

assert_win_change
		[#(severity_level, width, property_type, msg, coverage_level )]
		instance_name (clk, reset_n, start_event, test_expr, end_event );

Parameters


severity_level
Severity of the failure. Default: ‘OVL_ERROR.

width
Width of the test_expr argument. Default: 1.

property_type
Property type. Default: ‘OVL_ASSERT.

msg
Error message printed when assertion fails. Default: “VIOLATION”.

coverage_level
Coverage level. Default: ‘OVL_COVER_ALL.

Ports


clk

Clock event for the assertion. The checker samples on the rising edge of the clock.

reset_n

Active low synchronous reset signal indicating completed initialization.

start_event

Expression that opens an event window.

test_expr
[ width - 1: 0 ]
Expression that should change value in the event window

end_event

Expression that closes an event window.

Description

The assert_win_change assertion checker checks the expression start_event at each rising edge of clk to determine if it should open an event window at the start of the next cycle. If start_event is sampled TRUE, the checker evaluates test_expr. At each subsequent rising edge of clk, the checker evaluates end_event and re-evaluates test_expr. If end_event is TRUE, the checker closes the event window and if all sampled values of test_expr equal its value at the start of the window, then the assertion fails. The checker returns to the state of monitoring start_event at the next rising edge of clk after the event window is closed.

The checker is useful for ensuring proper changes in structures in various event windows. A typical use is to verify that synchronization logic responds after a stimulus (for example, bus transactions occurs without interrupts or write commands are not issued during read cycles). Another typical use is verifying a finite-state machine responds correctly in event windows.

Assertion Check


ASSERT_WIN_CHANGE
The test_expr expression did not change value during an open event window.

Cover Points


window_open
An event window opened (start_event was TRUE).

window_close
An event window closed (end_event was TRUE in an open event window).

See also

assert_change, assert_time, assert_unchange, assert_win_unchange,
assert_window

Example


assert_win_change #(

‘OVL_ERROR,
32,
‘OVL_ASSERT,
“Error: read not synchronized”,
‘OVL_COVER_ALL)
// severity_level
// width
// property_type
// msg
// coverage_level

valid_sync_data_bus_rd (



clk,
reset_n,
rd,
data,
rd_ack );
// clock
// reset
// start_event
// test_expr
// end_event


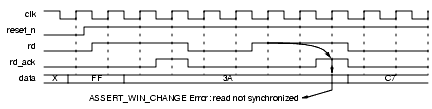

Ensures that data changes value in every data read window.


  © Accellera Organization, Inc. 2005
All Rights Reserved.
Standard OVL V1.1a
