COM Solves the Component Software Problem

Transparent Cross-Process Interoperability

Local/Remote transparency

COM is designed to allow clients to transparently communicate with components regardless of where those components are running, be it the same process, the same machine, or a different machine. What this means is that there is a single programming model for all types of component objects for not only clients of those component object, but  also for the servers of those component objects.

From a client's point of view, all component objects are accessed through interface pointers. A pointer must be in-process, and in fact, any call to an interface function always reaches some piece of in-process code first. If the component object is in-process, the call reaches it directly. If the component object is out-of-process, then the call first reaches what is called a "proxy" object provided by COM itself, which generates the appropriate remote procedure call to the other process or the other machine. Note that the client from the start should be programmed to handle RPC exceptions; then it can transparently connect to an object that is in-process, cross-process, or remote.

From a server's point of view, all calls to a component object's interface functions are made through a pointer to that interface. Again, a pointer only has context in a single process, and so the caller must always be some piece of in-process code. If the component object is in-process, the caller is the client itself. Otherwise, the caller is a "stub" object provided by COM that picks up the remote procedure call from the "proxy" in the client process and turns it into an interface call to the server component object.

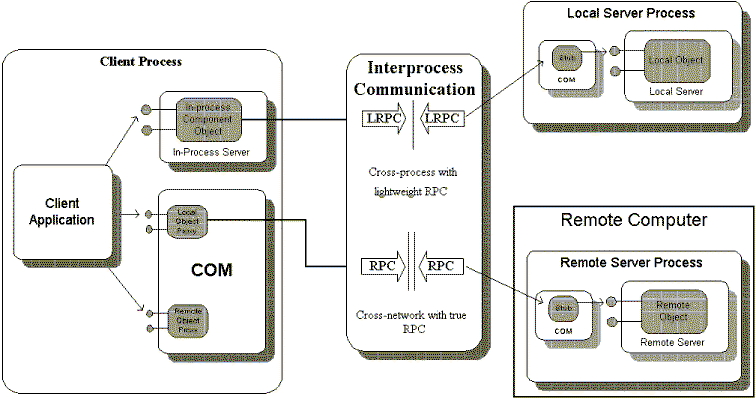

As far as both clients and servers know, they always communicate directly with some other in-process code, as illustrated in Figure 1.
