Online Store Application Design  -  continue

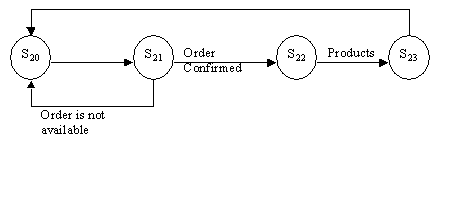

Finite State Machine for Customer IC























S₂₀ : initial state.



S₂₁ : At this state, customer IC performs placing order action. Outputs “order information” (include credit card information) to

       company IC.



S₂₂ : When “order confirmed” message arrives, customer IC knows order is available. It changes to S₂₂ to wait for order.



S₂₃ : When the products arrive, customer IC’s state changes to S_23. Action performed is to pick up the products.
