Tree structures
Each node is associated with a temporal operator and each leaf represents a basic object. The set of temporal operators depends on the system.
CMIF:
 |
Proposes both sequential and parallel operators. |
SRT:
|
|
Has sequential and equal operators. |
|
|
equal operators - the operands start simultaneously and must have the same duration. |
|
|
static checking phase is used to verify that the operands of an equal operator have the same duration. |
|
|
SRT is not able to deal with unpredictable events. |
SMIL:
|
|
Have more advanced set of operators to express interruptions like Par_min. |
Authoring Capabilities:
|
|
It is not straightforward to get the tree structure from the scenario. |
|
|

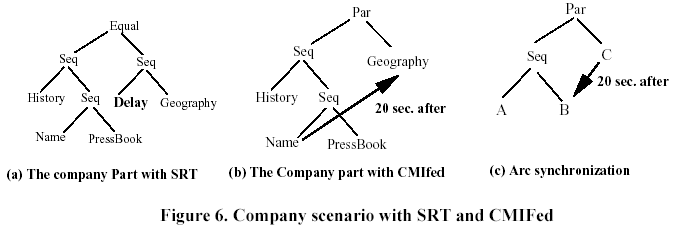

Figure 6(a) illustrates the Company part of the document example, using SRT. The only way to get a tree structure is to fix the delay between the beginning of History and Geography. Notice that the temporal information between Geography and Name is lost. |
Synchronization Arcs in CMIF:
|
|
Allows additional temporal information between any pair of nodes of the tree. |
|
|
Figure 6(b), shows a Synchronization Arc from Name to Geography specifying a delay of 20 s. |
|
|
Semantics of Synchronization Arcs is unclear. Figure 6(c), What happens if the A is longer than 20 s? |
