Structure

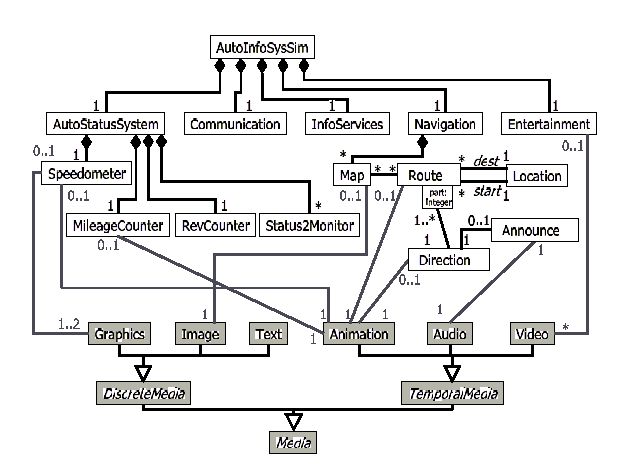

Class Diagram

  • Describes the static part of the model aspect
  • Consists of 2 parts:
    (1). Heirarchy of media type definitions: classes for all media types.
    (2). Logical model of an application: classes and associations to describe application domain objects and their interrelations.
