Connector Design (Contd...)

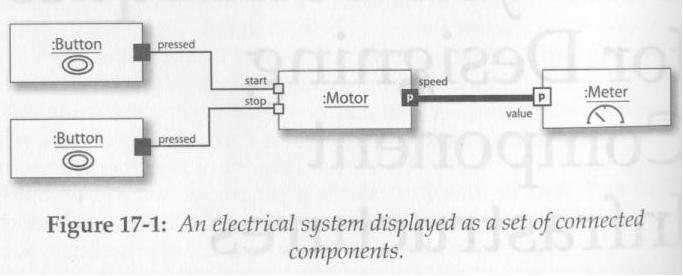

Analogy with an Electronics Starter Kit

Two types of Connectors in the Example

• Thin lines - delivery of an event from one component to another

• Thick lines - continuously updated properties

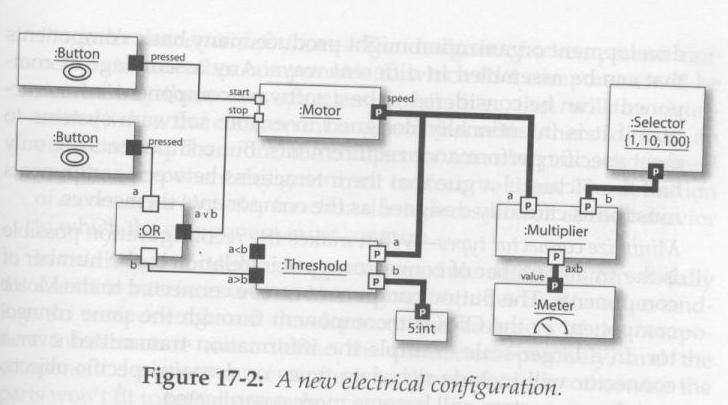

Analogy with an Electronics Starter Kit: Components connected in a more complex way
