UML Class Diagrams for representing Subsytems and Interfaces

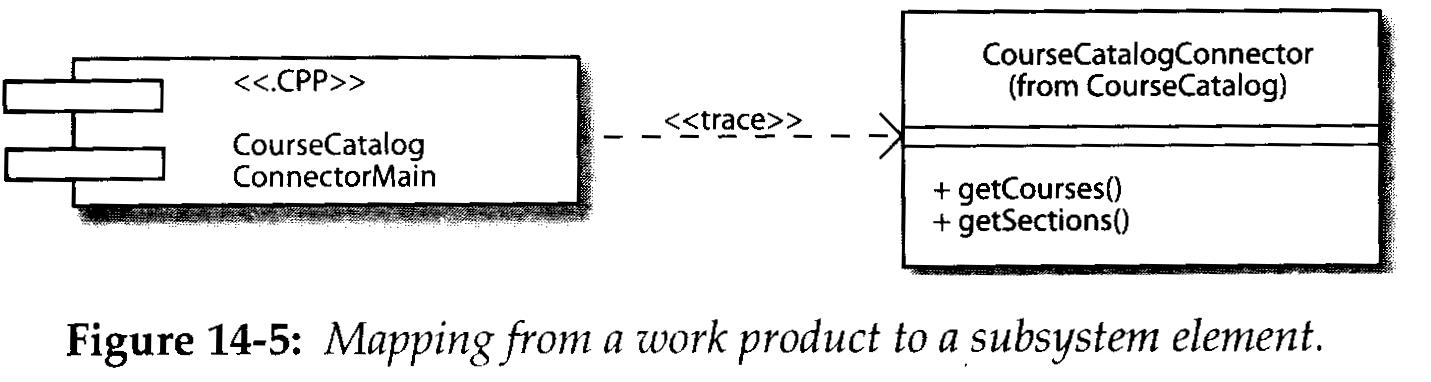

Each element contained within a UML subsystem is mapped to some work product by using a "trace" dependency relationship.

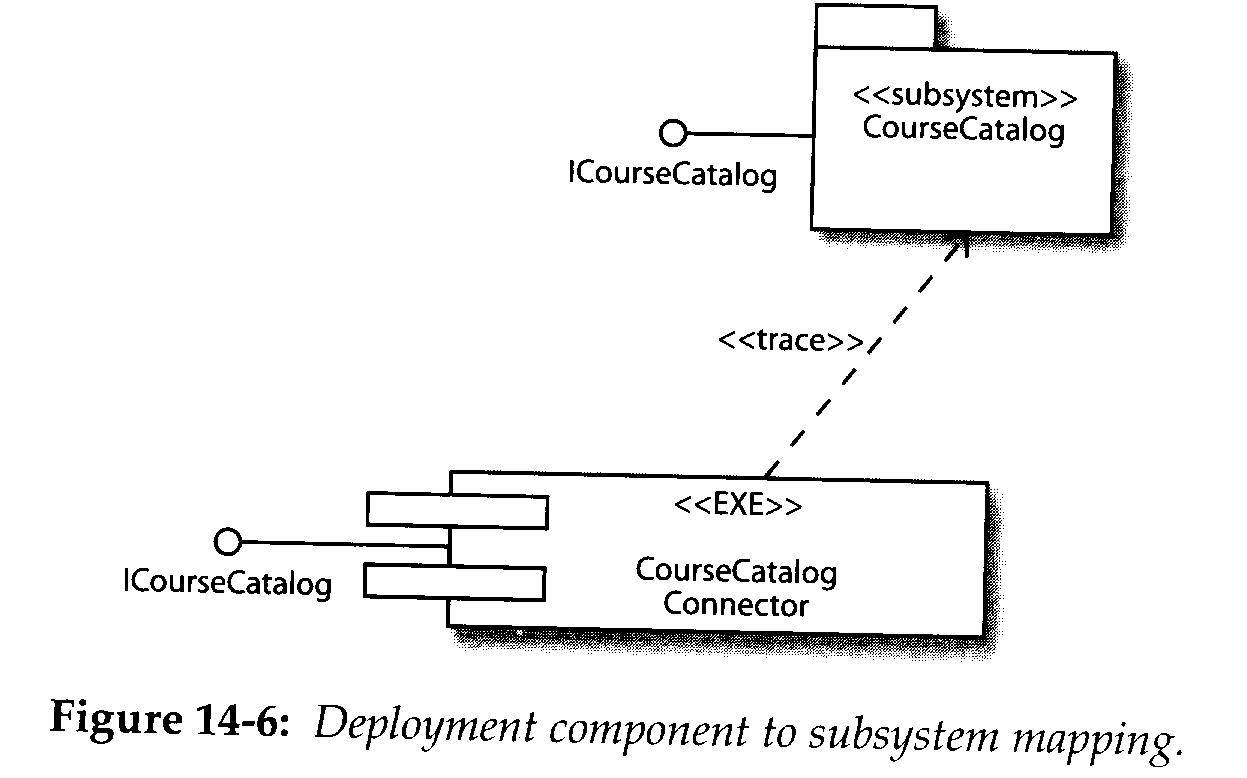

The mapping from a subsystem to its associated deployment component is shown using a "trace" depedency relationship from the UML component to the subsystem.
